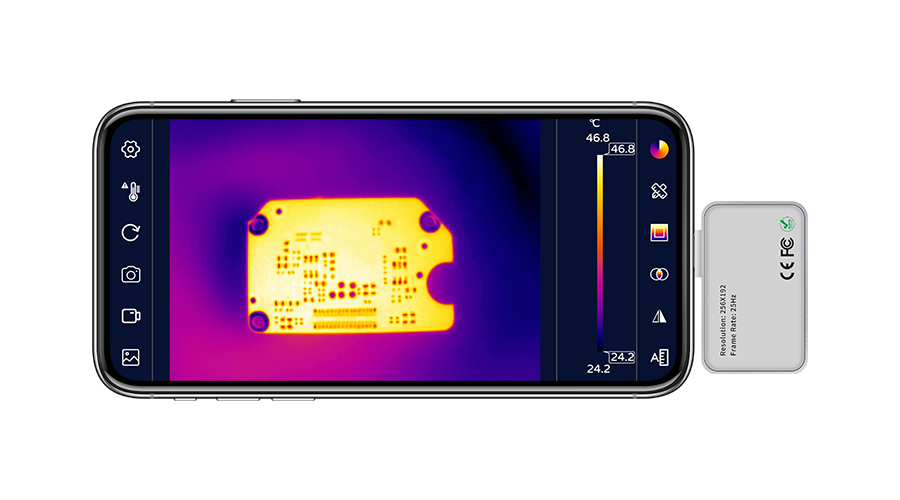

The 256*192 resolution of the infrared sensor translates to enhanced image clarity.

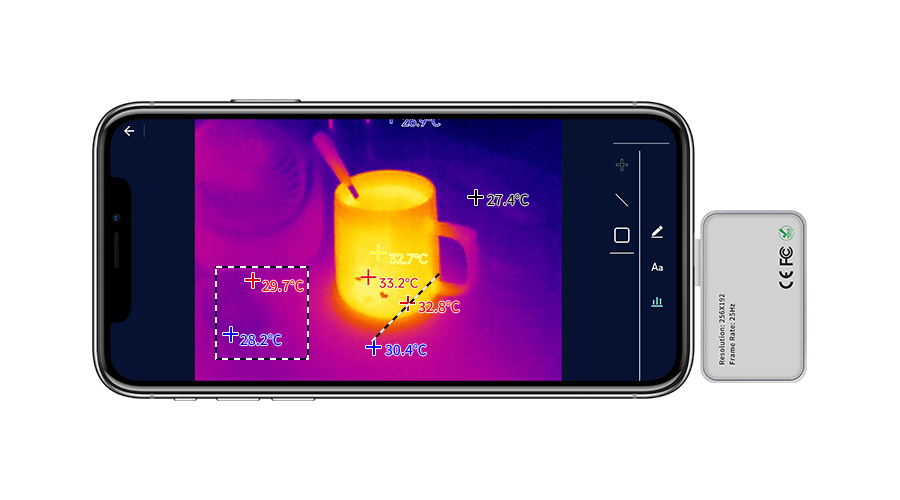

This feature empowers users to annotate images with points, lines, and bounding boxes for precise measurement purposes. By facilitating the simultaneous evaluation of multiple critical positions, it streamlines the workflow and significantly improves detection efficiency.
Spanning from -15℃ to 600℃, this device accommodates nearly all everyday applications. It prevents the hassle of buying several units due to limited ranges and avoids paying for unnecessary capabilities. This design lowers user expenses while ensuring a straightforward and convenient experience.

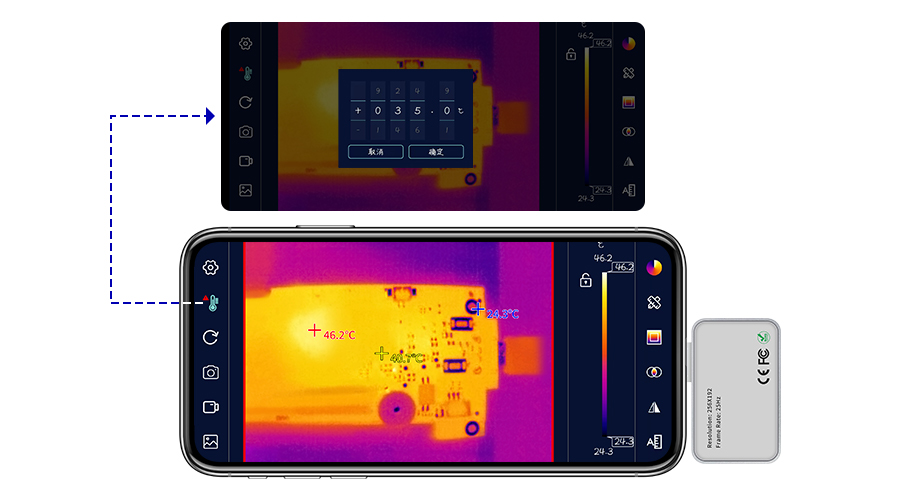

Users can personalize their alarm temperature threshold. If the temperature surpasses this limit, a visual alert will display on the screen accompanied by an audible buzzer. This dual notification system ensures immediate awareness of abnormal heat levels, effectively preventing any potential oversights.

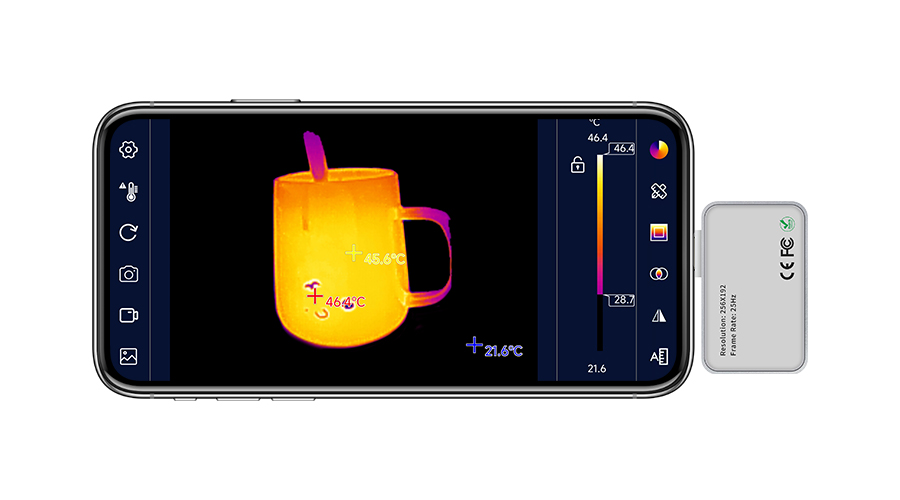

Tailor the temperature range to your desired viewing zone through manual adjustment—this screens out unrelated temperature details, ensuring objects at the target temperature are more distinguishable.

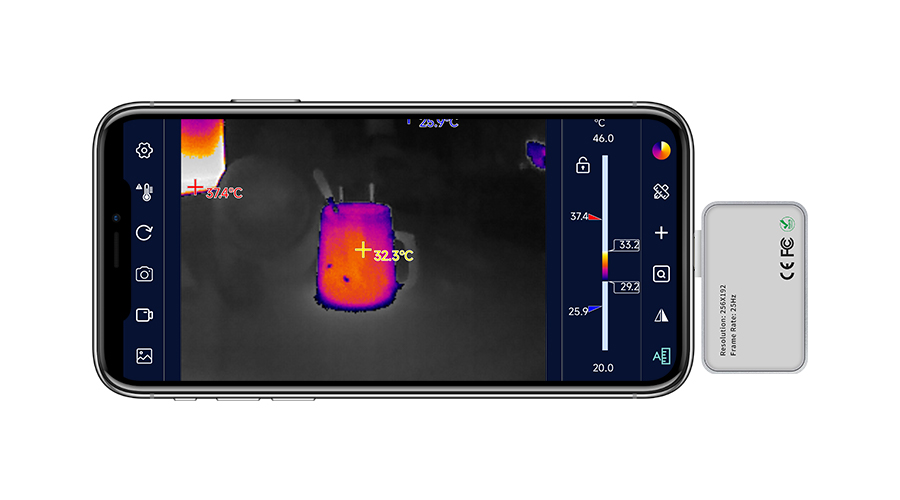

Users can trigger the high-temperature rapid detection mode to swiftly identify abnormal heat zones, ensuring that elevated temperature areas are distinctly displayed.
Designed to rapidly highlight high-temperature anomalies, the iron red, white heat, black heat, and red heat modes are essential tools for power inspections, industrial equipment monitoring, and vehicle maintenance.
The rainbow palette provides a distinct visualization of temperature gradients within a single scene, allowing users to quickly pinpoint abnormal hot or cold spots and significantly enhancing thermal image interpretation efficiency. For instance, during circuit board inspections, the color transitions help map the spread of heat sources, enabling technicians to identify potential localized overheating hazards.
For low-temperature detection, the cold blue palette clearly reveals subtle details, making it highly suitable for identifying issues such as water leaks and escaping cold air from air conditioning systems.

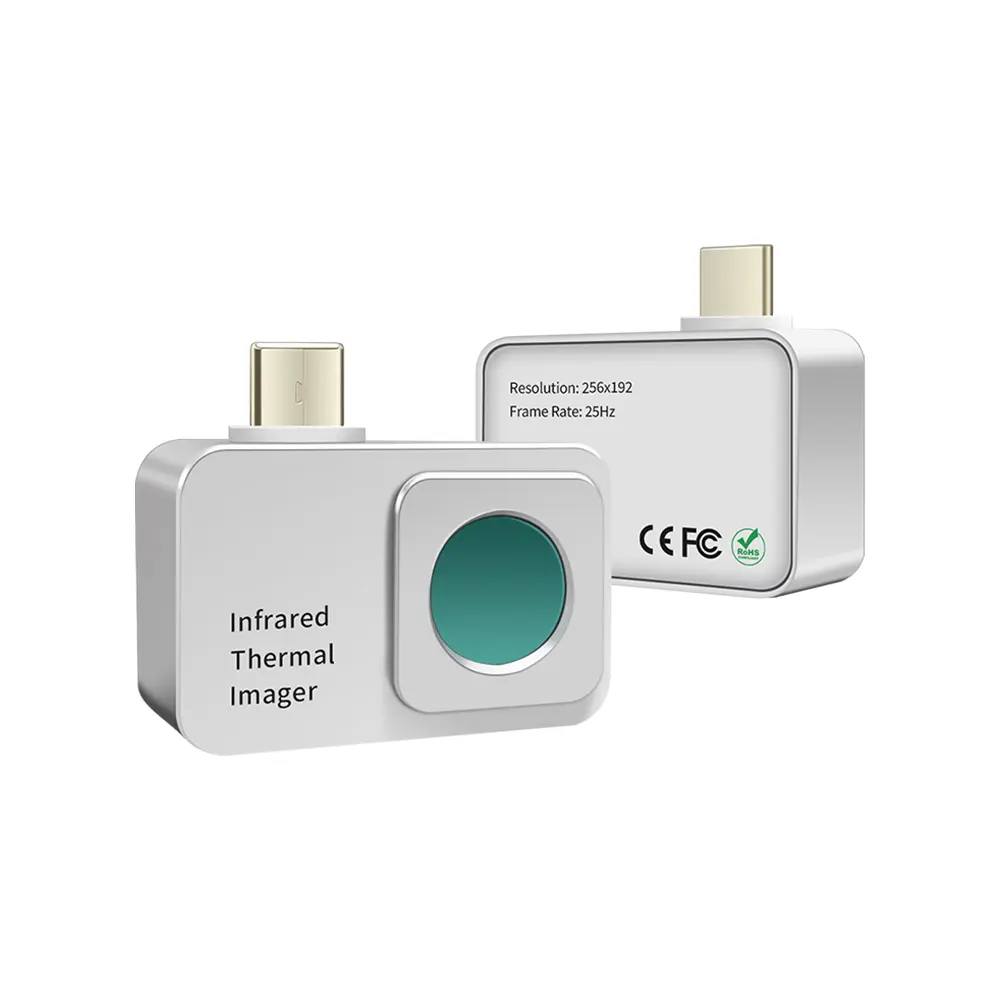

Boasting a compact, lightweight design, this device comes with a standard USB Type-C interface. Simply connect it to your mobile phone to use it instantly—no charging required, making it highly portable and easy to operate.
1. What is the infrared sensor resolution of this device?
The device features a 256*192 infrared sensor resolution, which delivers enhanced thermal image clarity for detailed and accurate inspections.
2. What is the temperature measurement range?
The measurement range spans from -15℃ to 600℃. This wide spectrum accommodates nearly all everyday applications and industrial monitoring tasks, saving costs on multiple units.
3. How does the custom high-temperature alarm function?
Users can set a personalized temperature threshold. If the temperature goes beyond this limit, the device triggers a dual notification system consisting of an on-screen visual alert and an audible buzzer.
4. What color palettes does the system support?
It features six color palettes: iron red, white heat, black heat, and red heat for general inspections; a rainbow palette for clear mapping of temperature gradients; and a cold blue palette optimized for low-temperature leak detection.
5. Does the device require separate charging or batteries?
No, it requires no external charging. It features a compact design with a standard USB Type-C interface, allowing you to connect it directly to your mobile phone for instant use.
6. Can I manually isolate specific temperature zones?
Yes, the manual temperature range adjustment allows you to tailor your viewing zone. This filters out unrelated background temperatures, making the targeted objects highly distinguishable.
