Introducing the MD-64CA Thermal Imaging Module, a leading product from a trusted China factory. This state-of-the-art infrared thermal imaging camera is equipped with a high-resolution 640x512 detector and cutting-edge 12μm technology. Featuring a 9.1mm wide-angle lens, the MD-64CA delivers exceptional imaging quality, high sensitivity, and an expansive field of view. It provides crystal-clear and stable thermal images, making it ideal for a range of applications including industrial inspections, security monitoring, and outdoor search and rescue operations. Choose the MD-64CA for your professional-grade thermal imaging needs, backed by reliable suppliers in China

Product Description

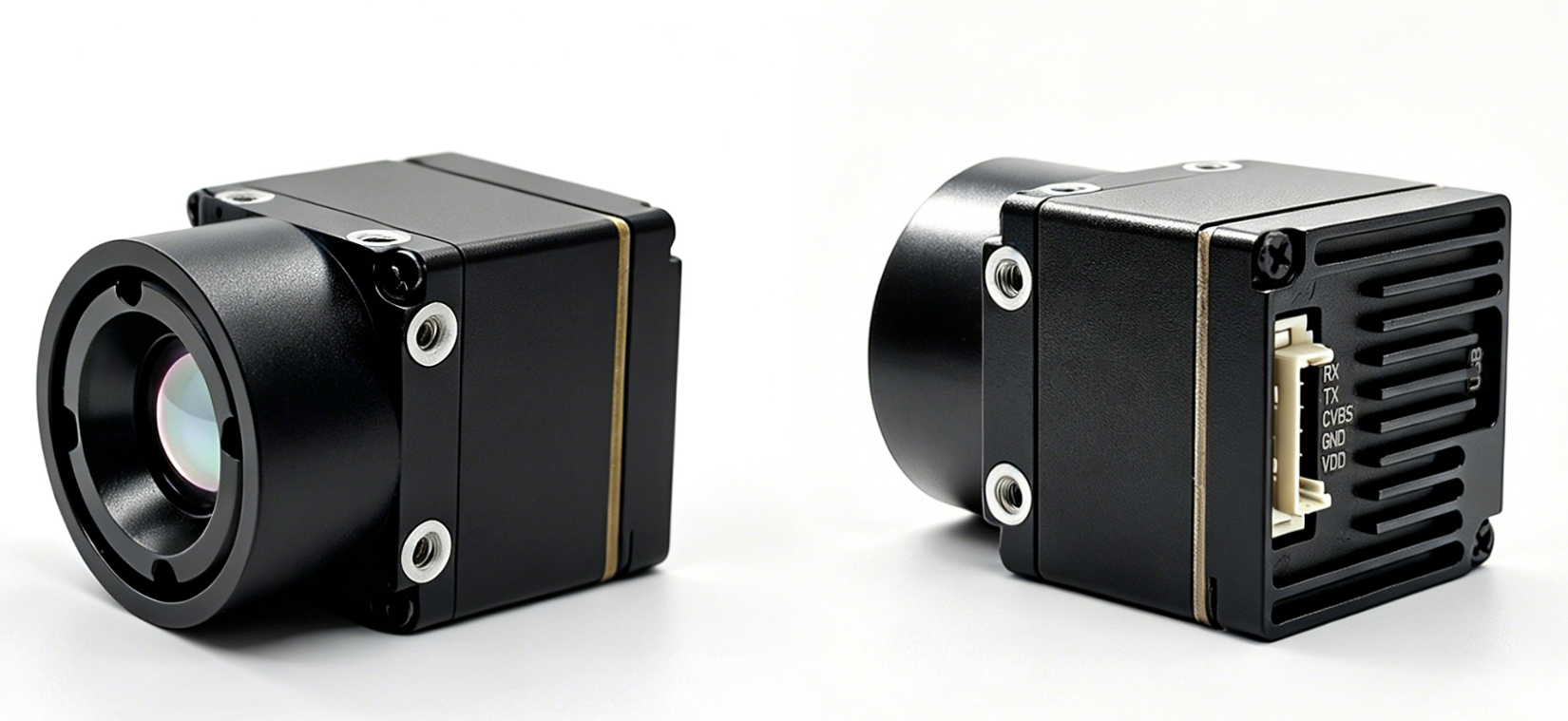

Product Features

  • 640x512 high-definition resolution, 50Hz frame rate: rich picture details and accurate identification.
  • Advanced 12μm process: high sensitivity, compact and lightweight design.
  • 9.1mm golden focal length lens for wide-angle and long-distance observation.
  • Supports CVBS analog video output and USB UVC interface.
  • Custom ASIC chip with extremely low power consumption (<0.7W).
Product Features

Specification

ParameterDetails
ModelMD-64CA
SensorVanadium oxide uncooled infrared
Resolution640*512
Frame rate50Hz
Lens9.1mm
Power consumption<0.7W
Weight23.1g

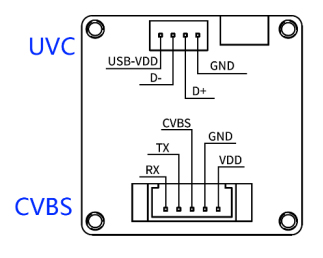

Interface Definition

Interface Diagram

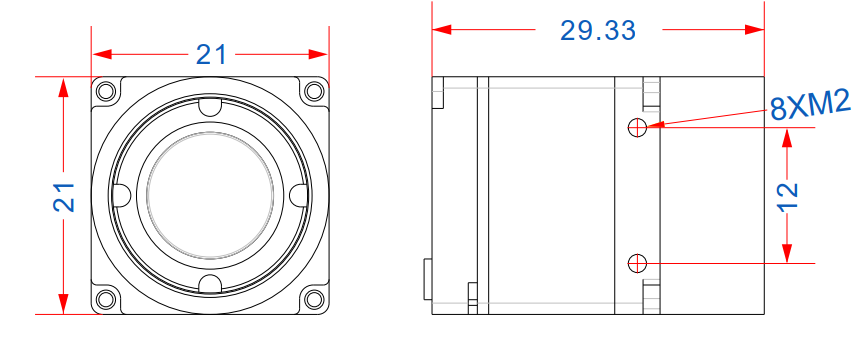

Product Dimensions

Dimensions

Frequently Asked Questions

Q: What is the resolution of the MD-64CA?
A: It features a high-definition resolution of 640x512 pixels.
Q: What is the frame rate?
A: The module operates at a 50Hz frame rate for smooth imaging.
Q: Does it support UVC interface?
A: Yes, it supports both USB UVC and CVBS analog outputs.
Q: How much power does it consume?
A: It uses a custom ASIC chip with very low power consumption, less than 0.7W.
Q: What is the total weight?
A: The module is lightweight, weighing only 23.1g.
Q: What is the operating temperature range?
A: It is designed to work between -20°C and 60°C.
