Cheap H1FB Mobile Phone Infrared Thermal Imager 160*120 Resolution - Trusted China Suppliers and Factory Factories, Product

Introducing the H1FB, a cutting-edge entry-level mobile infrared thermal imager designed for both ease of use and portability. With a resolution of 160*120, this thermal imager is perfect for a variety of applications, including home repairs, outdoor search and rescue, and equipment maintenance, Manufactured by leading suppliers in China, the H1FB features a compact, lightweight design that allows for easy transport and plug-and-play functionality. Simply connect it to your phone via USB and utilize the dedicated Android app for seamless operation. The device ensures low power consumption, making it an efficient tool even when powered by a mobile phone, One of the standout features includes one-click quick identification of high-temperature areas, complemented by offline analysis capabilities for captured imagesβ€”enabling detailed evaluation through point, line, and rectangle region analysis, Explore the innovation of the H1FB thermal imager, proudly crafted by trusted factories in China, and elevate your thermal imaging experience today

Product Description

Versatile Specifications

Infrared sensor
πŸ”¬

Infrared Sensor Resolution

160Γ—120 infrared sensor resolution, with better image quality.

Self-analysis
πŸ“

Self-Analysis Function

Supports drawing points, lines, and boxes for measurement, allowing users to measure several key locations simultaneously, improving detection efficiency.

Temperature range
🌑️

Temperature Measurement Range

With a high temperature measurement range of -15℃ to 600℃:

❄️ Low-temp: Detecting air leaks

🏠 Medium-temp: Underfloor heating detection

⚑ High-temp: Electrical equipment maintenance

Alarm
πŸ””

Temperature Alarm

Customize the alarm temperature threshold. When the temperature exceeds the set threshold, an alarm will be triggered to remind the user.

Manual adjustment
πŸŽ›οΈ

Manual Temperature Range Adjustment

Manually adjust the temperature range to your desired zone, filtering out irrelevant temperature information and making target objects stand out.

Quick search
⚑

High Temperature Quick Check

Supports one-click activation of the high-temperature quick search function to help users quickly locate hot spots.

Palettes
🎨

Palette

Supports 6 color palettes

πŸ”΄ Iron Red / Red-Hot / White-Hot / Black-Hot: Ideal for electrical maintenance.

🌈 Rainbow: Pinpointing temperature gradients.

πŸ”΅ Cool Blue: Perfect for water and air leak detection.

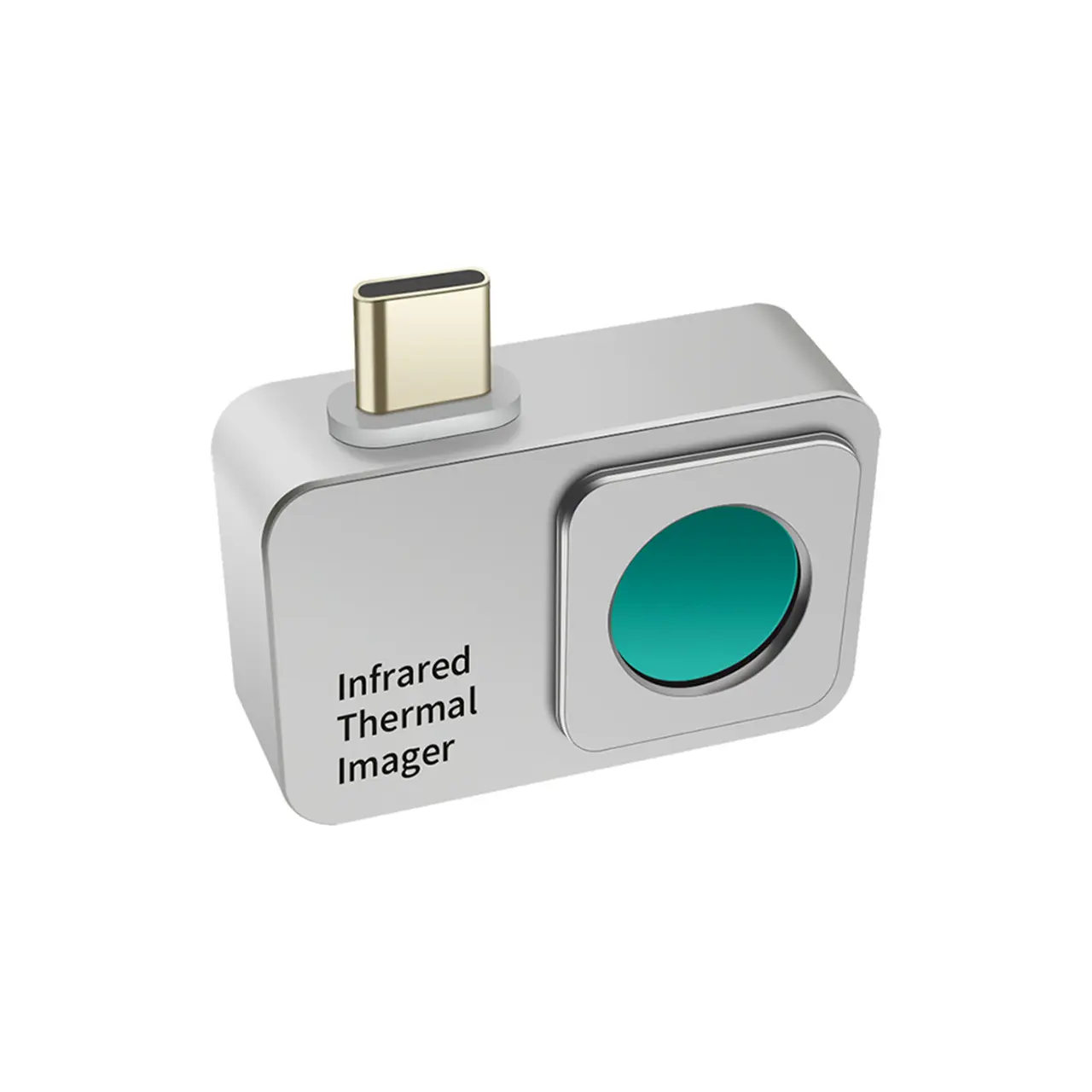

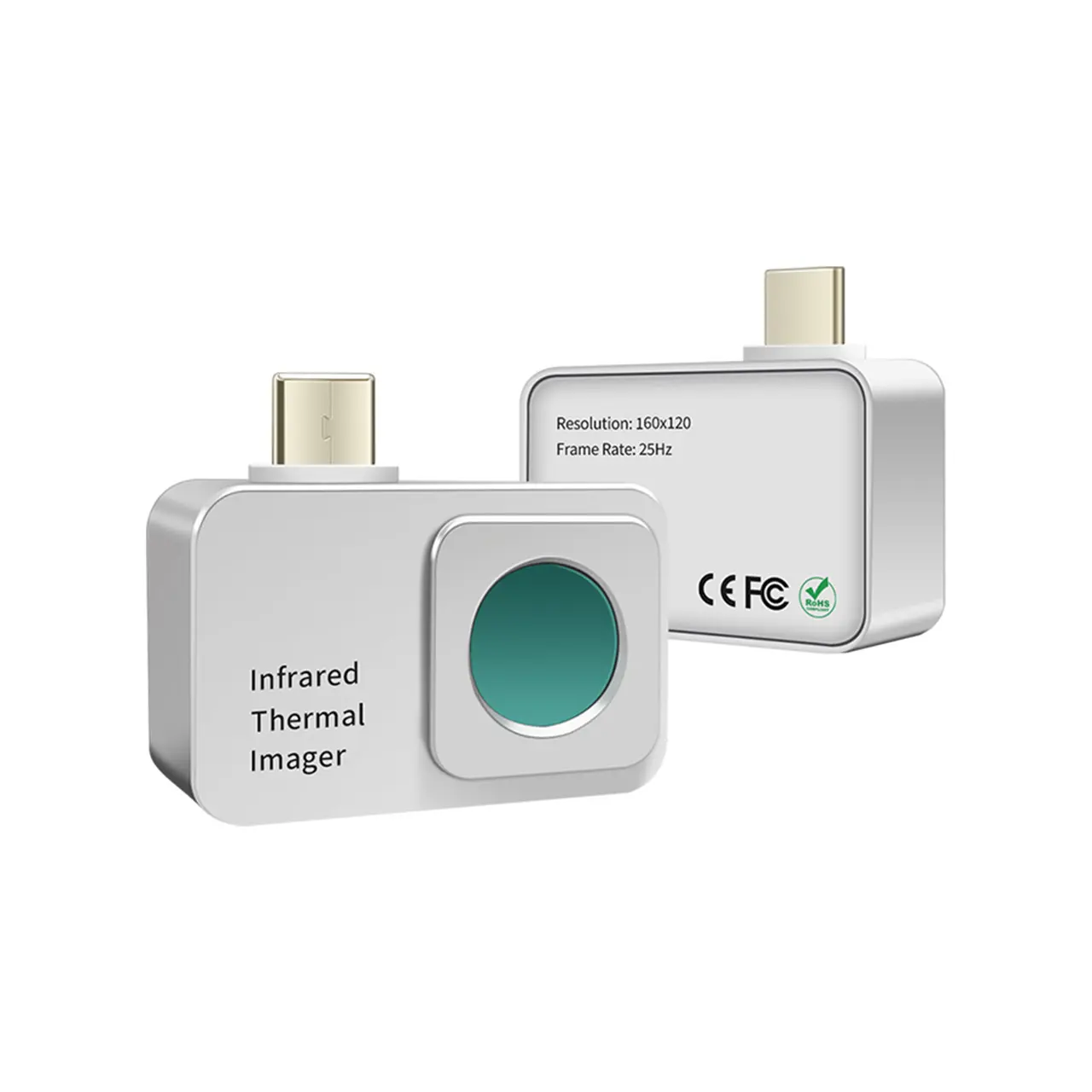

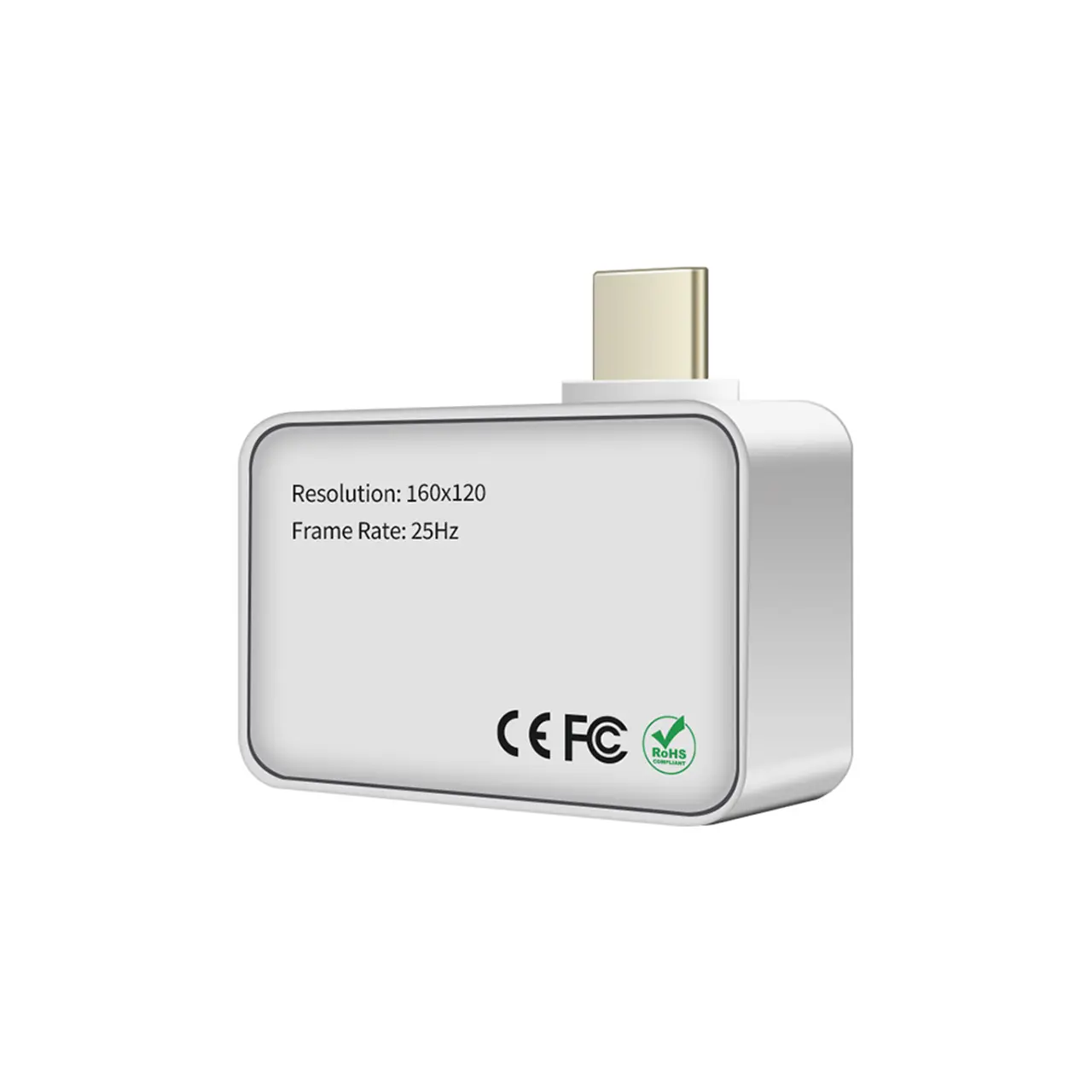

Portable
πŸ“±

Portable and Easy to Use

Small, lightweight, and equipped with a standard USB Type-C interface. Plug-and-play functionality with no charging required.

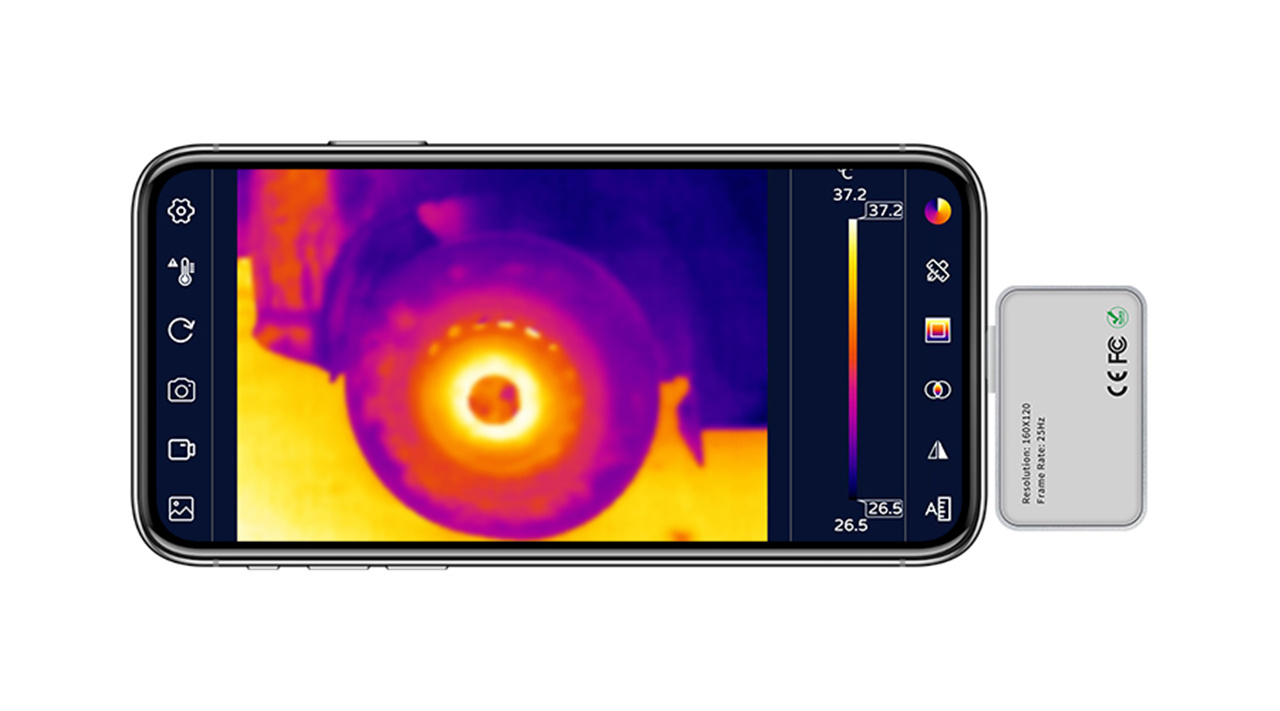

App Interface

App interface
Frequently Asked Questions
QWhat is the infrared sensor resolution?
The device features a 160Γ—120 infrared sensor resolution for clear thermal imaging.
QWhat is the temperature measurement range?
It supports a wide range from -15℃ to 600℃, covering diverse industrial and home needs.
QDoes it support temperature alarms?
Yes, users can set custom thresholds to trigger alerts for proactive monitoring.
QHow many color palettes are available?
There are 6 color palettes designed for various inspection scenarios.
QHow do I connect the device?
Simply plug it into your smartphone's USB Type-C port for instant plug-and-play use.
